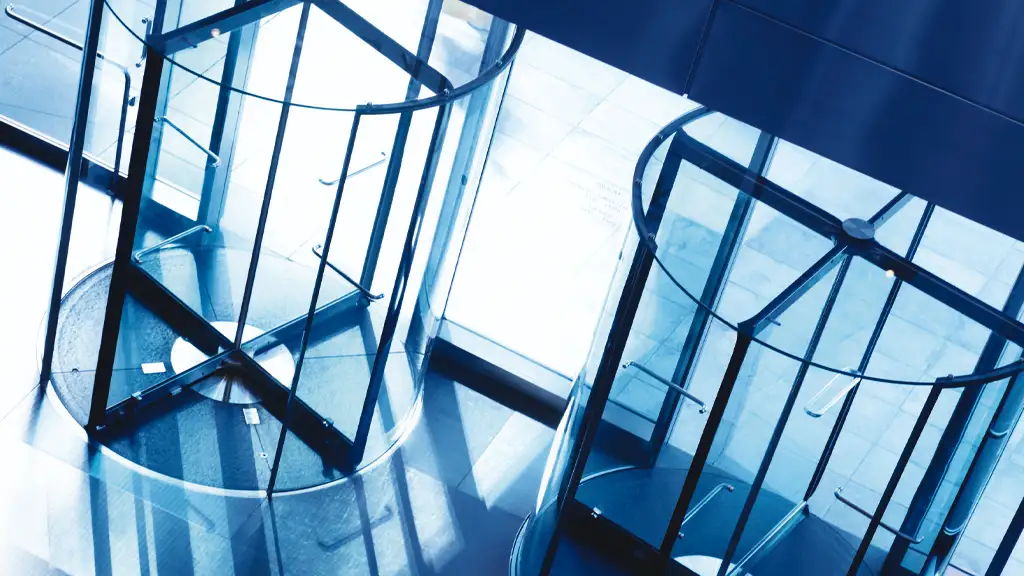

Full Glass Automatic Revolving Doors
All-Glass Automatic revolving doors have gained significant popularity in recent years due to their numerous advantages. These sleek and sophisticated doors offer a seamless blend of style, functionality, and energy efficiency.
Full glass automatic revolving doors are stylish entrance systems that rotate automatically and are made mostly of glass. First of all, they usually have three or four transparent wings that create walking sections for people. Next, sensors detect when someone approaches and the door begins to rotate on its own. In addition, the full glass design allows more natural light into the building, creating an open and modern look. As a result, these doors are popular in hotels, shopping malls, corporate offices, and showrooms. Moreover, they help save energy by keeping the indoor climate steady and reducing noise and dust from outside. Sometimes, they include safety features that stop the door if anything blocks the way. However, when the diameter is too large, the glass wings can become heavy and may start to sag. Therefore, for wider entrances, showcase or multifunctional models are recommended. In conclusion, full glass automatic revolving doors combine elegance, efficiency, and modern technology for high-end buildings.
- Natural Light and Visibility: All Glass automatic revolving doors maximize natural light penetration into interior spaces.
- Rotational Mobility: All Glass automatic revolving doors are designed with a rotational mechanism, enabling the doors to pivot on their own axis and offering users unrestricted movement
- Enhanced Ventilation: All Glass automatic revolving doors promote effective ventilation within spaces. The doors can be set to rotate continuously or intermittently, based on your preference
- Inclusive Access: All Glass automatic revolving doors can be designed to accommodate individuals with disabilities, ensuring barrier-free Access
- Acoustic and Thermal Efficiency: High-quality All Glass automatic revolving doors offer superior sound and heat insulation

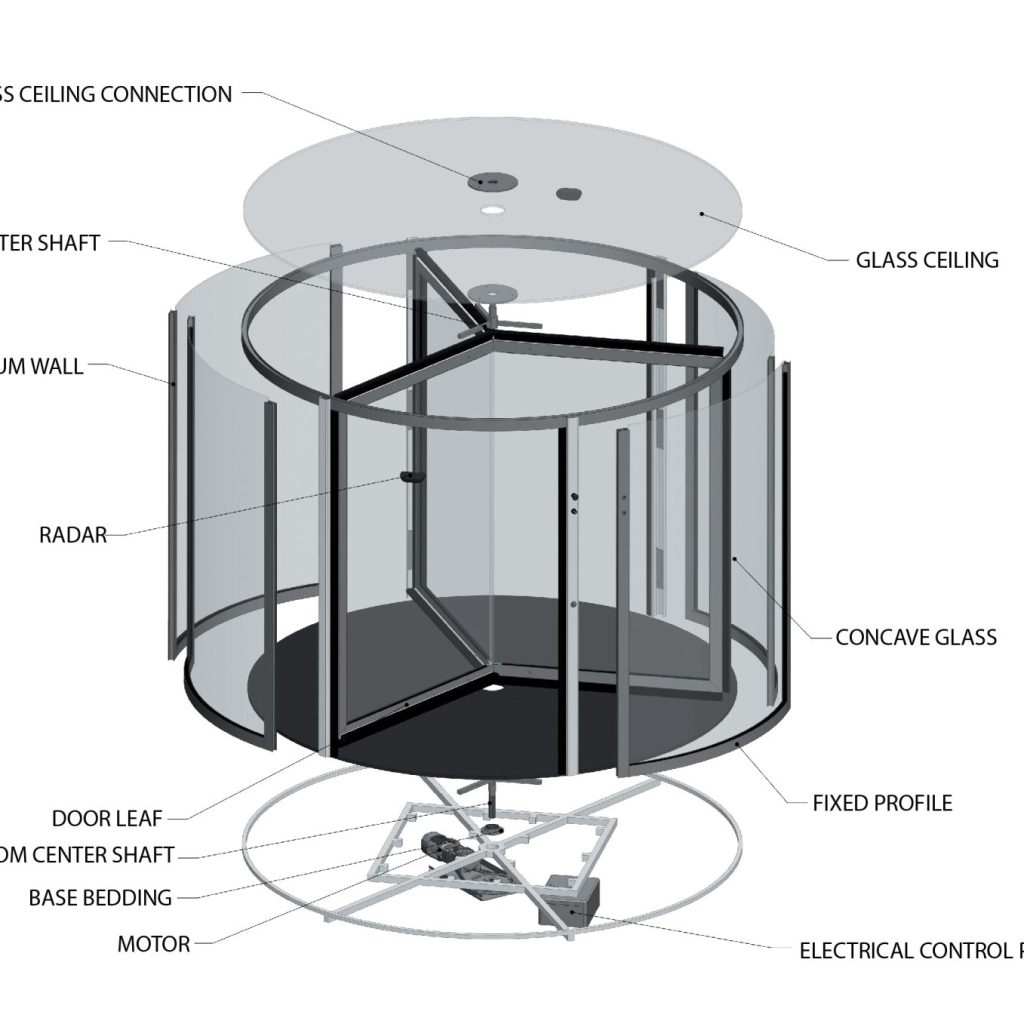

Model LVX-RG3, LVX-RG4 Full Glass Automatic Revolving Doors
| Equipment | Basic Equipment | Additional Equipment |
|---|---|---|
| Outer Diameter | 2000 mm – 4000 mm | |
| Inner Diameter | 1890 mm – 3890 mm | |
| Total Height | 2200 mm – 4000 mm | |
| Passage Height | 2000 mm – 3000 mm | Design dimensions |
| Entrance Width | 825 mm – 2709 mm | Special size are possible |
| Movable Wings | 3 or 4 rigid (non-folding) Leaves | Electromechanical emergency folding function of the sashes (break out) |
| Rotation of the Flaps | Automatic drive with speed control and PLC control unit | Mechanical (manual) revolving door |
| Lock for the Night | Electromechanical lock | Night closing shutters (manual or automatic) |
| Coating | Powder coating according to RAL catalogue | – Stainless steel plates (304 or 316) – Anodizing – Special coating |
| Flat Glass (Doors) | Tempered glass, 8 mm | – Triplex, 4+4 mm – Other glass types are possible |
| Bent Glass (Cylinder) | Tempered glass, 8 mm | – Triplex, 4+4 mm – Other glass types are possible |
| Safety | – Vertical safety bumpers installed on entrance columns – Horizontal safety bumpers installed on wings | – Vertical safety sensors on the canopy – Protective mullions on the rotating sashes and the bent part |
| Control | – Digital control panel – Emergency stop button 1 pc – Slowdown button (for people with disabilities) 2 pcs. | |
| Ceiling | 8+8 Laminated glass | |
| Lighting | LED lamps 6/8 pcs. | |
| Brushes | Natural horsehair, 45 mm | |
| Mounting Base | Installed on finished floor | Stainless steel mounting ring |
ADITTIONAL OPTION
- Preparation for Thermal Curtain Installation: Ceiling Perforation
- Built-in thermal curtain
- Floor covering
- Moisture-Proof Coating for Canopy Roofs
