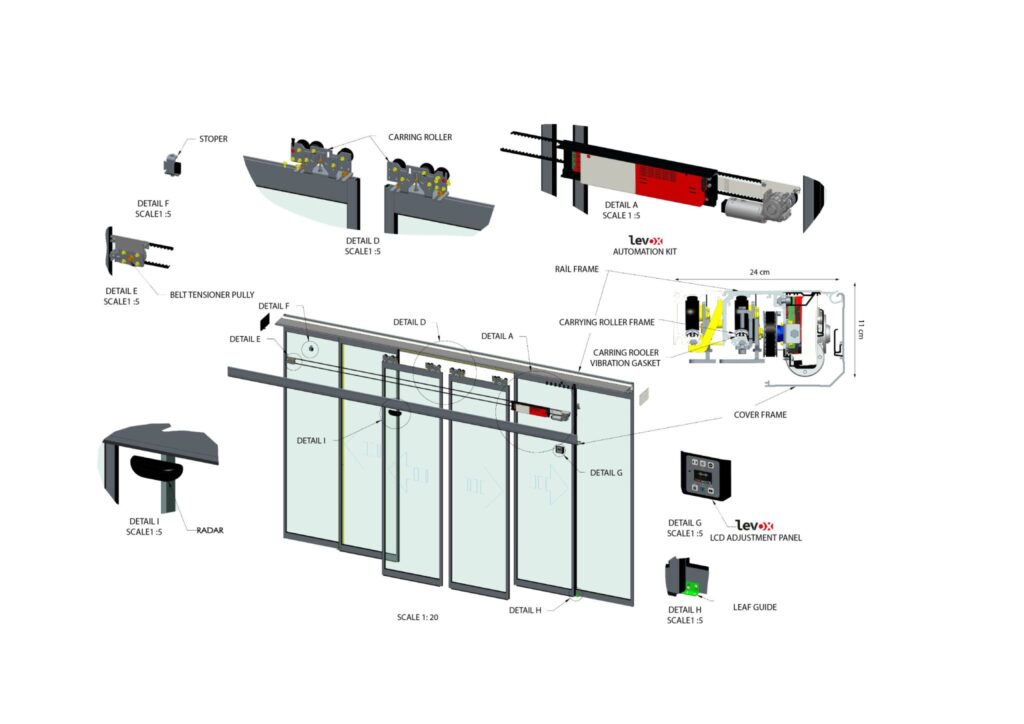

Telescopic Automatic Sliding Doors

Telescopic Automatic Sliding door varieties

Single-Way Opening: Single-direction doors are suitable for openings of at least 175 cm
Double-Way Opening: Double-direction doors require a minimum opening width of 220 cm

Space Efficiency: Telescopic Automatic Sliding doors are a type of sliding door that consists of multiple panels that overlap and slide together to open and close. This design allows them to occupy a minimal amount of space when closed, making them ideal for smaller spaces or areas with limited room for swinging doors.
Versatility: Telescopic Automatic Sliding doors can be used in various settings, including homes, offices, and commercial spaces.
Ease of Use: They are easy to operate and require minimal physical effort.
Aesthetic Appeal: Telescopic Automatic Sliding doors can add a modern and stylish touch to any space.

Model LVX-SS1, LVX-SS2 Standard Automatic Sliding Doors

Power Supply	220 V/AC±10% – 50 Hz.
Motor	24V DC
Wing	Single or Double Leaf
Control Drive	Microprocessor based LED control unit
Opening Speed	15–45 cm/s
Closing Speed	5–43 cm/s
Passage Opening Height (max)	2500 mm
Passage Opening Width (max)	2000 mm
Max Leaf Weight – Single Leaf	130 kg. (1×130 kg/leaf)
Max Leaf Weight – Double Leaf	240 kg. (2×120 kg/leaf)
Safety System	3H-IR14 Sensor
Leaf Safety	Robust triple pulley system with non-falling rail and secure Leaf mechanism
Programmer Functions	Manual, Automatic, Close, Open, One or Two directional, Partial opening
Self Adjustment Feature	Open / Closed
